Igniter Controls and DAQ (2022)

Chase MacDonnell

Nov 14, 2024 — 2 min read

A hot-fire of Florida Rocket Lab's Igniter V2.

As part of my role as the Director of Avionics at the Florida Rocket Lab, I developed the original controls and data acquisition system for our igniter. This system was divided into three sections: a Arduino based PLC (Controllino) for controls, a IO-Link Master for data acquisition and a computer to send and receive commands from both the PLC and IO-Link Master. The firmware for the Arduino based PLC was written in C++ and communicated with the computer over a custom UDP protocol. Then the computer communicated with the IO-Link Master over HTTP.

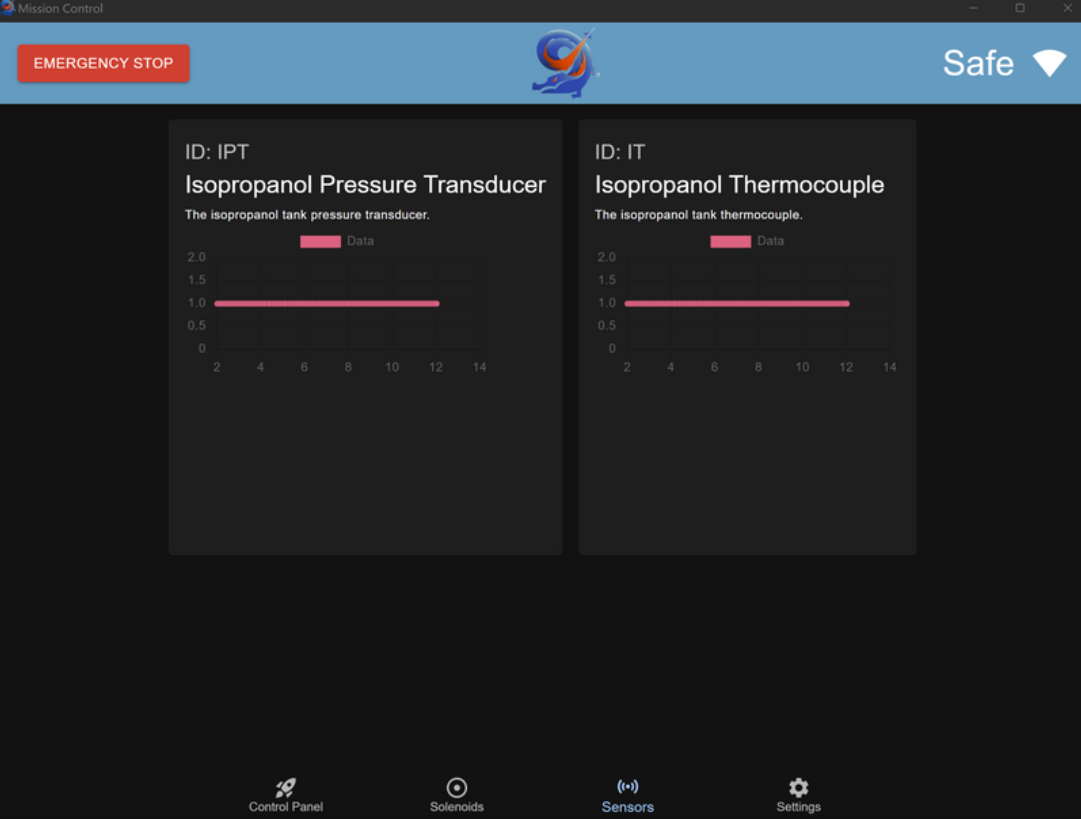

The software on the computer was split into two parts: a "agent" and UI. The agent was written entirely in Rust and communicates with the PLC and IO-Link Master, then the UI communicates with the "agent" via a custom RPC protocol.

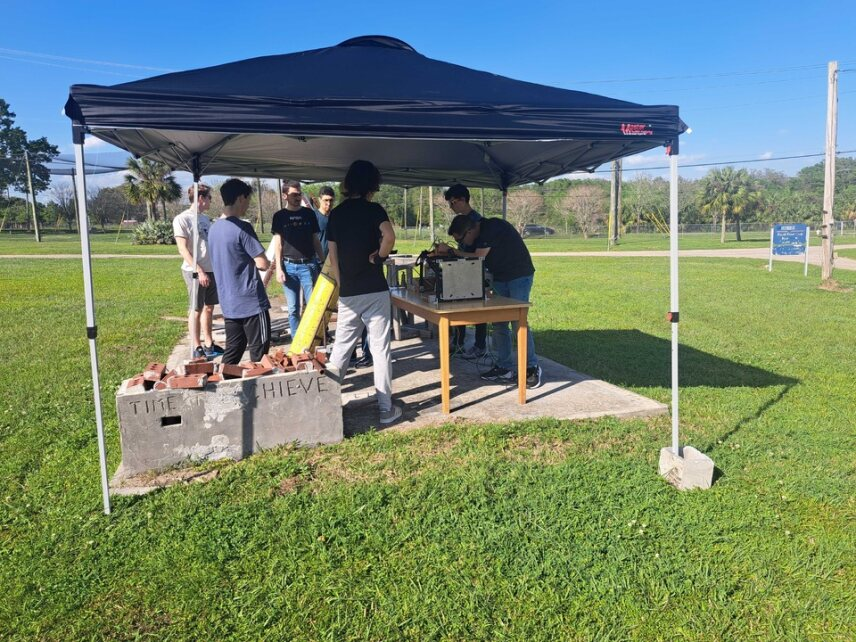

Setting up the igniter test stand for a test.

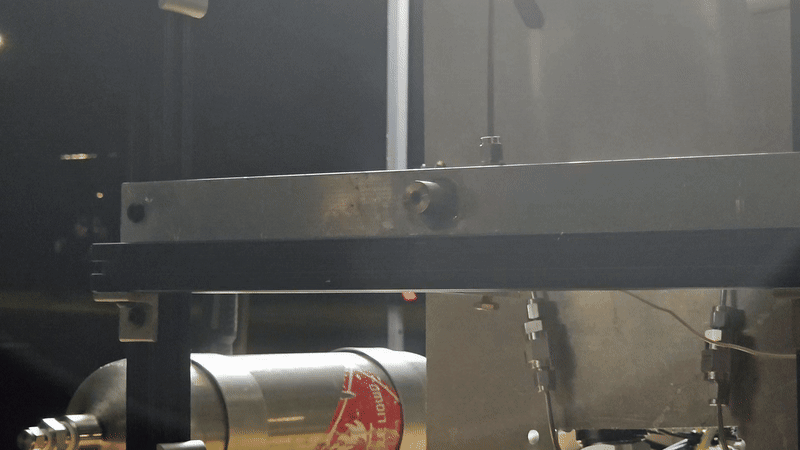

GIF of the igniter firing for a single second.

Photo of the fluid system supplying the igniter.

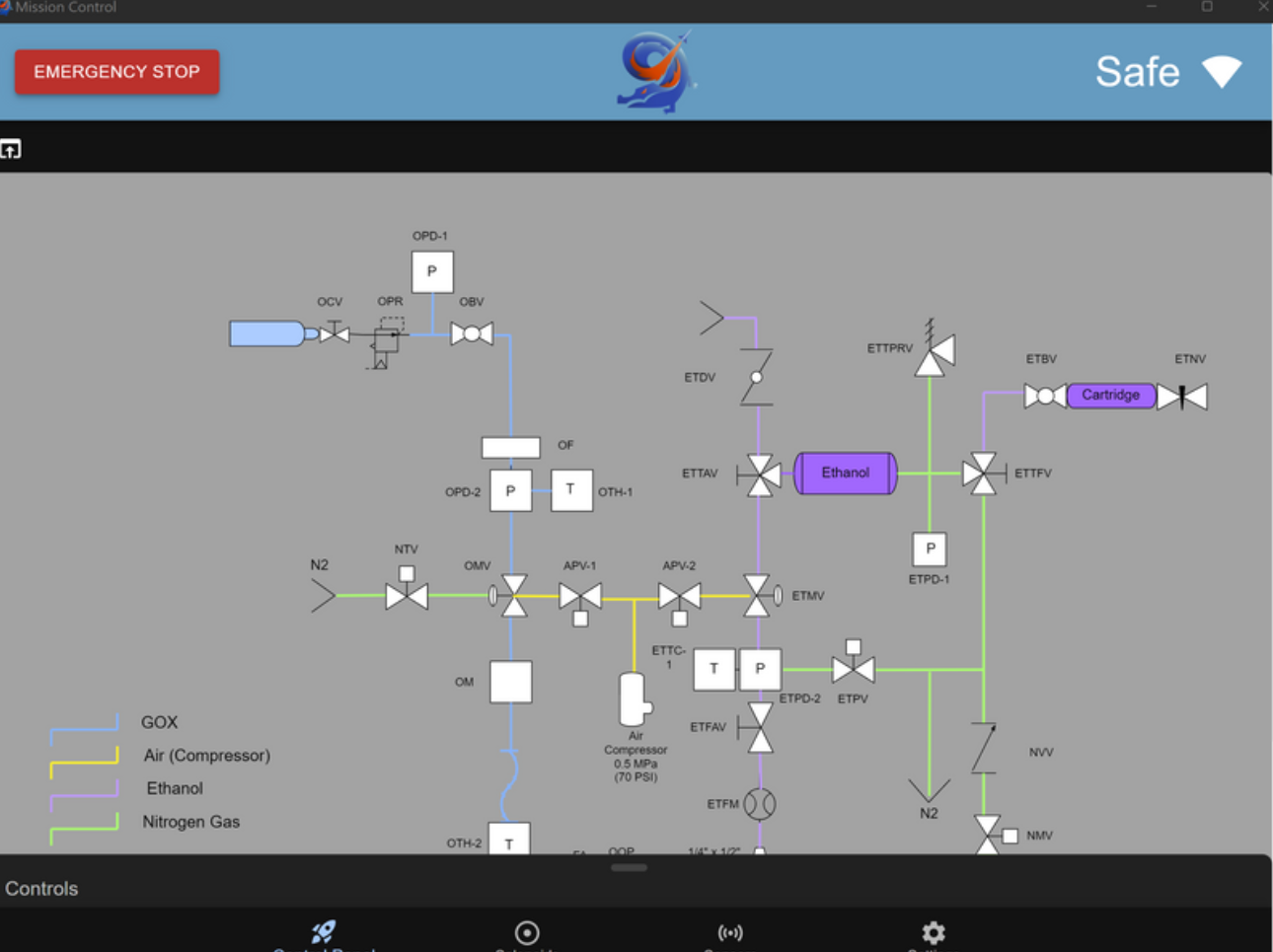

Photo of the P&ID viewer without a connection to the test stand. (This is NOT the correct P&ID, I took this picture while testing the SVG viewer)

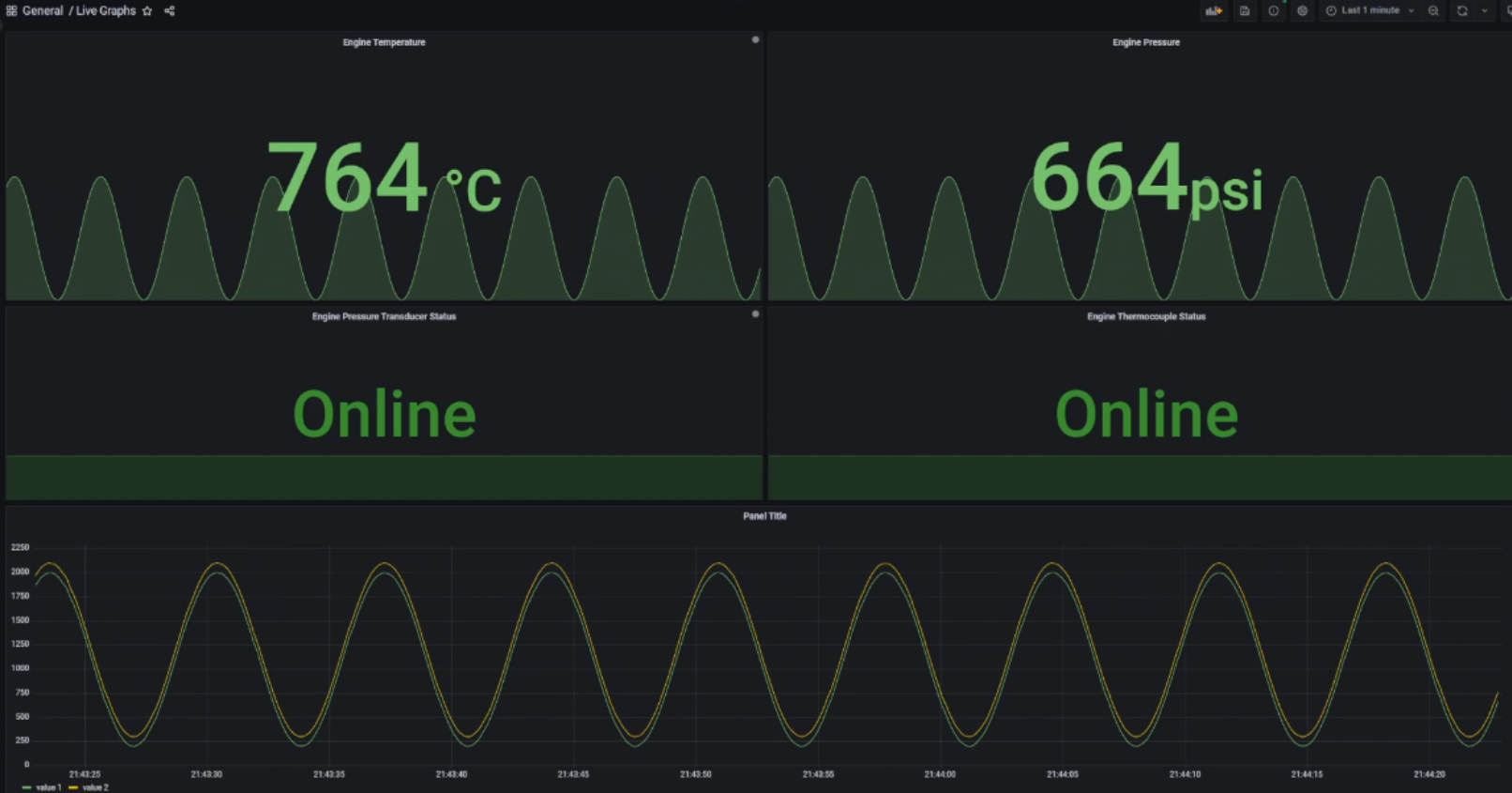

Grafana based data viewer being fed with mocked data.

Trailer Test Stand (2024)

As part of my role as Vice President of Avionics, and more recently President, I designed and built a large portion of our Test Stand Trailer. This trailer is designed to support "Sparrow", team's liquid rocket engine designed to produced 500lbf of force. Just like our

Igniter Controls and DAQ Rev 2 (2024)

See https://chasemacdonnell.net/igniter-controls-and-daq-2022/ for more information on the original igniter system. GitHub: On a private Gitea instance, will work on transferring to my GitHub. Using all of the issues I discovered from my original igniter system, I designed a new custom controller to allow for better diagnostics and

EtherCAT over 100Base-T1 (2023)

While evaluating different options for networking on the Florida Rocket Lab's Test Stand Trailer, I developed a series of PCBs that converted a standard 100Base-TX Ethernet signal into a 100Base-T1 Automotive Ethernet signal. This was designed to allow for single cable connection to every controller and sensor reader

Florida Rocket Lab ERP (2023)

GitHub: Being kept private for use by the Florida Rocket Lab. Throughout 2023 the Florida Rocket Lab at the University of Florida expanded from being a 30 person team working on a single project, to a 100+ person team with multiple separate projects happening concurrently. With this expansion came immense
